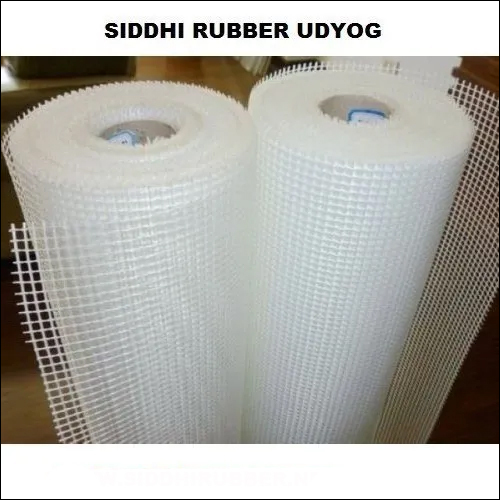

Product Description
Specification :
- Density : 45-180 GSM
- Length: 50 meters to 300 meters
- Width: 600 to 2000 mm.
- Hole size: 2.3 mm x 2.3 mm, 2.5 mm x 2.5 mm, 4 mm x 4 mm, 5 mm x 5 mm.
- Special Products can be made according to the specification of the customer.
|
Usage/Application
|
Water Proofing
|
|
Pattern
|
Plain
|
|
Width
|
1Mtr
|
|
Brand
|
Siddhi
|
|
Length
|
50Mtr ,100Mtr
|
|
GSM
|
45 GS,60 GSM, 80 GSM
|
|
Material
|
Fiberglass
|
Properties :
|
Property
|
Particulars
|
Specification
|
|
Weight
|
|
45-180 GSM
|
|
Mesh Size
|
|
2.5 x2.5 mm
|
|
Density
|
(WARP/MD)
|
10
|
|
(WEFT/CMD)
|
10
|
|
Breaking Strength ( N
|
(WARP/MD)
|
700
|
|
(WEFT/CMD)
|
700
|
|
Mass Per Unit Area ( GSM)
|
|
50
|
|
Length Per Roll Size ( mtr.)
|
|
50
|
|
Standard Width ( mm )
|
|
1000
|
|
Coating
|
|
Acrylic
|
|
Weave
|
|
Leno
|
Reliable Waterproofing ReinforcementOur fiberglass mesh offers excellent reinforcement for waterproofing applications, enhancing the structural integrity of surfaces exposed to moisture. Its high tensile strength and resistance to alkalis make it the preferred choice among construction professionals looking for long-term solutions.
Versatile Size and GSM OptionsSelect from two practical roll lengths-50 meters and 1000 meters-and three different GSM levels to match the specific demands of your project. The 1-meter width ensures broad coverage, making it convenient to install over large areas efficiently.
FAQ's of Waterproofing Fiberglass Mesh:
Q: How is fiberglass mesh used in waterproofing projects?
A: Fiberglass mesh is embedded into waterproofing layers, such as coatings or membranes, to reinforce and stabilize the surface. This prevents the formation of cracks and enhances the longevity of the waterproofing system.
Q: What are the benefits of using your fiberglass mesh for waterproofing?
A: Our fiberglass mesh increases tensile strength, minimizes crack formation, and improves the overall stability of waterproofed surfaces. Its durability ensures that structures remain protected against moisture penetration for years.
Q: When should I choose 45, 60, or 80 GSM fiberglass mesh?
A: The GSM value relates to the thickness and strength of the mesh. 45 GSM is suitable for light reinforcement, 60 GSM offers standard strength, and 80 GSM is ideal for heavy-duty applications requiring enhanced durability and extra support.
Q: Where can this fiberglass mesh be applied?
A: It is suitable for use in a variety of settings, including roofs, basements, exterior walls, and water tanks. Essentially, it can be used anywhere a reliable waterproofing barrier and reinforcement are required.
Q: What is the recommended process for installing the mesh?
A: Clean the surface thoroughly, then apply the first layer of waterproofing material. Embed the fiberglass mesh into the wet coating, ensuring it is wrinkle-free, and follow with additional coats as specified by the product guidelines.
Q: Can this mesh be used for other applications besides waterproofing?
A: Yes, besides waterproofing, it can reinforce plaster, prevent wall cracks, and be used in EIFS (External Insulation and Finish Systems) and other construction reinforcement tasks.
